At the heart of these systems lies the elevator motor. So, what is an elevator motor and what does it do? In this article, we will comprehensively address the topic of elevator motors, explaining everything you've ever wondered about, from its history to its types, structure to operating principles, selection to maintenance. Our aim is to provide you with in-depth knowledge about elevator motors and help you get to know this important technology better.
What is an Elevator Motor?
The elevator motor is the fundamental component of an elevator system that enables movement. It converts electrical energy into mechanical energy, making it possible for the elevator car to move up and down. Simply put, the elevator motor is the heart and source of motion for the elevator. A powerful and reliable elevator motor guarantees the efficient, safe, and comfortable operation of the elevator system.
History of the Elevator Motor
The history of the elevator motor, while not as old as the elevator itself, marks a significant turning point in the development of elevator technology. While early elevators were powered by human or animal strength, steam power and then electric motors began to be used with the Industrial Revolution.
The invention of electric motors in the late 19th century revolutionized elevator motor technology. Electric motors became widely used in elevator systems because they were more compact, efficient, and controllable compared to steam engines. In particular, Nikola Tesla's development of the alternating current (AC) motor accelerated the transition of elevator motor technology into the modern era. AC motors became ideal for elevator applications due to their simpler structure and lower maintenance requirements.
Throughout the 20th century, elevator motor technology continuously developed, producing more powerful, quieter, and more energy-efficient motors. Today, elevator motor technology is being further advanced with innovations such as intelligent control systems and frequency inverters.
Types and Features of Elevator Motors
Types and features of elevator motors vary depending on the type of elevator system, building height, carrying capacity, and speed requirements. There are basically two main types of elevator motors:

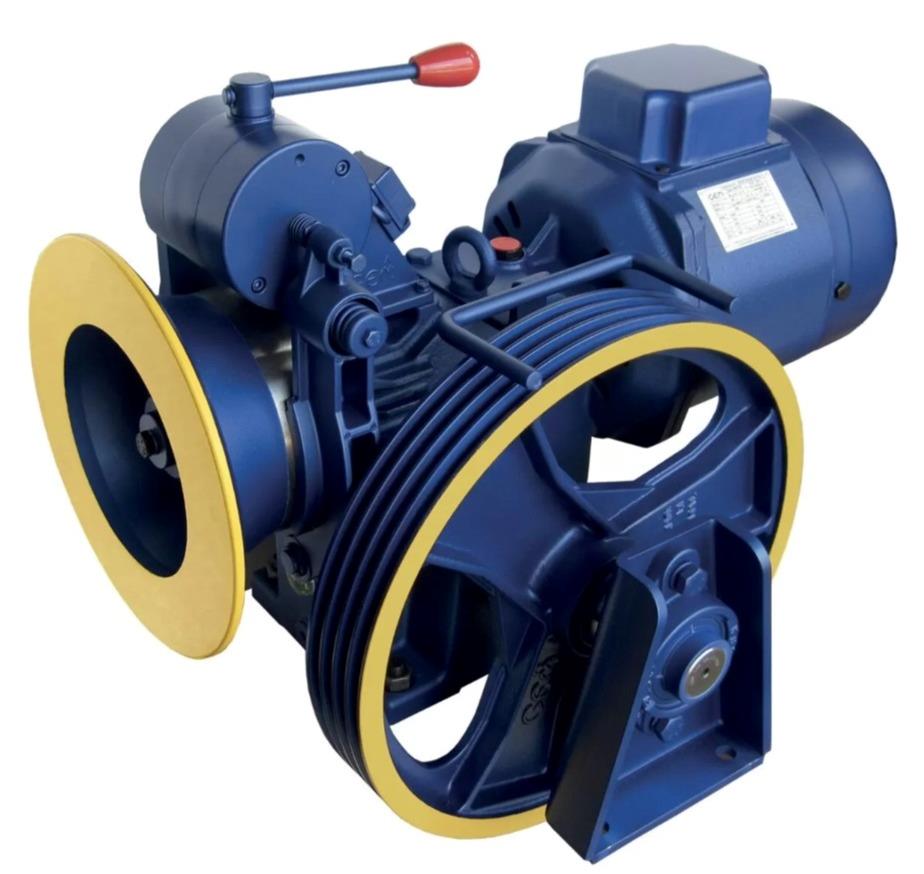

- Geared Elevator Motors (Gear Motors): These motors use a gearbox (reducer) between the electric motor and the pulley that moves the elevator car. The reducer reduces the high speed of the motor, increasing its torque and allowing the car to move in a controlled manner. Geared elevator motors are commonly used, especially in medium and low-rise buildings, because they are lower in cost and easier to maintain. However, due to friction in the gear system, their energy efficiency is lower than gearless motors, and they may produce more noise.
- Gearless Elevator Motors (Traction Motors): These motors are directly connected to the pulley that moves the elevator car without using a gearbox. Gearless elevator motors offer higher energy efficiency, quieter operation, and a longer lifespan. Additionally, their more compact designs allow them to be used in machine room-less elevator systems. However, gearless elevator motors can be more costly than geared motors and may require more complex control systems. Gearless elevator motors are generally preferred for high-rise buildings and high-speed elevators.
Features of elevator motors also differ according to their types. Factors such as motor power, speed, torque, energy efficiency, noise level, dimensions, and weight play an important role in elevator motor selection.
Structure of Elevator Motors
The structure of elevator motors basically consists of an electric motor and mechanical components. The electric motor is the main component that converts electrical energy into mechanical energy. The mechanical components include the gearbox (in geared motors), pulley, brake system, and other parts that transmit this mechanical energy to the movement of the elevator car.
Basic structural components of elevator motors:
- Stator: The stationary part of the electric motor that creates a magnetic field to rotate the rotor.
- Rotor: The rotating part of the electric motor that generates mechanical energy by rotating due to the stator's magnetic field.
- Reducer (Gearbox): Found in geared motors, it reduces the high speed of the motor and increases its torque.
- Pulley: The wheel-shaped part that transmits the motor's rotational motion to the elevator ropes and enables the car's movement.
- Brake System: An important safety component that ensures the elevator car stops and remains stationary safely. Electromagnetic brakes are commonly used.
- Motor Housing: The outer structure that protects all motor components and provides mechanical support.
- Cooling System: A fan or liquid cooling system that prevents the motor from overheating and ensures efficient operation.
Operating Principle of Elevator Motors
The operating principle of elevator motors is based on the electromagnetic force principle of electric motors. When energy is supplied to the electric motor, a magnetic field is generated in the stator windings. This magnetic field induces a current in the rotor windings, causing the rotor to rotate.
In geared elevator motors, the rotational motion of the motor is transmitted to the pulley via the reducer. Since the reducer reduces the motor's speed while increasing its torque, the pulley rotates more powerfully and moves the elevator car up or down.
In gearless elevator motors, since the motor is directly connected to the pulley, the rotational motion of the motor directly translates into the car's movement. These motors offer more precise control and the ability to operate at higher speeds.
In both motor types, the brake system ensures that the elevator car stops and remains stationary at the desired floor. The control system precisely manages the motor's speed, direction, and stopping, ensuring a safe and comfortable elevator ride.
Elevator Motor Selection
Elevator motor selection is a critical decision for the performance, safety, and energy efficiency of the elevator system. The following factors should be considered for proper elevator motor selection:
- Building Height and Number of Floors: Higher buildings require more powerful and high-speed motors, while lower-rise buildings may suffice with lower-powered motors.
- Carrying Capacity: The maximum load the elevator needs to carry is an important factor determining motor power.
- Speed Requirements: The transit time between floors affects the motor's speed and power. High-speed elevators require more powerful motors.
- Energy Efficiency: Energy-efficient elevator motors should be preferred to reduce energy costs and environmental impact. Gearless motors are generally more energy-efficient.
- Noise Level: Quiet-operating elevator motors are preferred, especially in residential buildings. Gearless motors are generally quieter.
- Ease of Maintenance: Easy and cost-effective motor maintenance reduces long-term operating costs.
- Cost: The elevator motor cost is an important factor in selecting the most suitable motor within budget constraints.
In the elevator motor selection process, it is important to work with an expert elevator company and determine the most appropriate motor type for the building's characteristics and requirements.
Elevator Motor Usage and Rules to Follow
Elevator motor usage and rules to be followed are vital for the safe and long-lasting operation of the elevator system. Users and maintenance personnel must pay attention to the following rules:
- Avoid Overloading: Loadings exceeding the elevator's carrying capacity can overload the elevator motor, leading to malfunctions and safety risks. Pay attention to the elevator's capacity label.
- Avoid Sudden Stops and Starts: Sudden stopping or starting of the elevator can damage the elevator motor and other mechanical components. Ensure the elevator moves in a controlled and smooth manner.
- Avoid Unauthorized Interventions: Unauthorized interventions into the elevator motor and control system can cause serious malfunctions and safety hazards. Maintenance and repair operations should only be performed by authorized personnel.
- Do Not Neglect Periodic Maintenance: Periodic maintenance of the elevator motor and the entire elevator system guarantees safe and efficient operation. Adhere to the maintenance schedule regularly.
- Follow Emergency Instructions: In case of elevator entrapment or malfunction, follow emergency instructions without panicking and notify the authorities.
Elevator Motor Maintenance
Elevator motor maintenance is indispensable for the safety, performance, and longevity of the elevator system. Regular maintenance helps prevent malfunctions, increase energy efficiency, and reduce operating costs.
Points to consider in elevator motor maintenance:
- Periodic Checks: The general condition of the motor, connections, cables, brake system, and cooling system should be checked regularly.
- Lubrication: Regular lubrication of the gearbox and other moving parts in geared motors reduces friction and prevents wear.
- Cleaning: Keeping the motor and its surroundings free from dust and dirt ensures efficient operation of the cooling system and prevents overheating.
- Brake Adjustments: Proper adjustment of the brake system ensures the elevator stops and remains stationary safely.
- Noise and Vibration Control: Check if the motor is producing abnormal noises or vibrations, and if a problem is detected, it should be resolved.
- Energy Efficiency Tests: Regularly check the motor's energy consumption and take necessary measures if energy efficiency decreases.
Elevator motor maintenance should be performed by expert and authorized elevator maintenance companies. The maintenance schedule should be determined according to the elevator type, frequency of use, and recommendations of the manufacturer.
Conclusion
The elevator motor is the heart and source of motion for modern elevator systems. From its historical development to its current diversity, structure to operating principle, selection to maintenance, elevator motor technology is a remarkable engineering marvel that simplifies and enhances our lives. Proper elevator motor selection, regular maintenance, and adherence to usage rules guarantee the safe, efficient, and long-lasting operation of elevator systems. Being knowledgeable about elevator motors helps us better understand this technology and better appreciate its importance in our daily lives.
