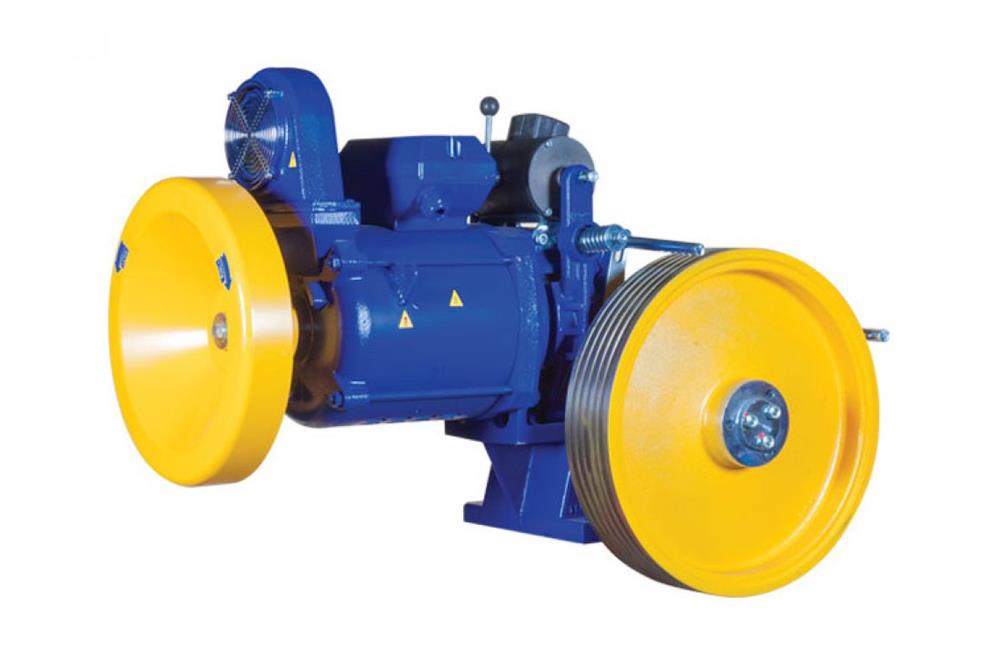

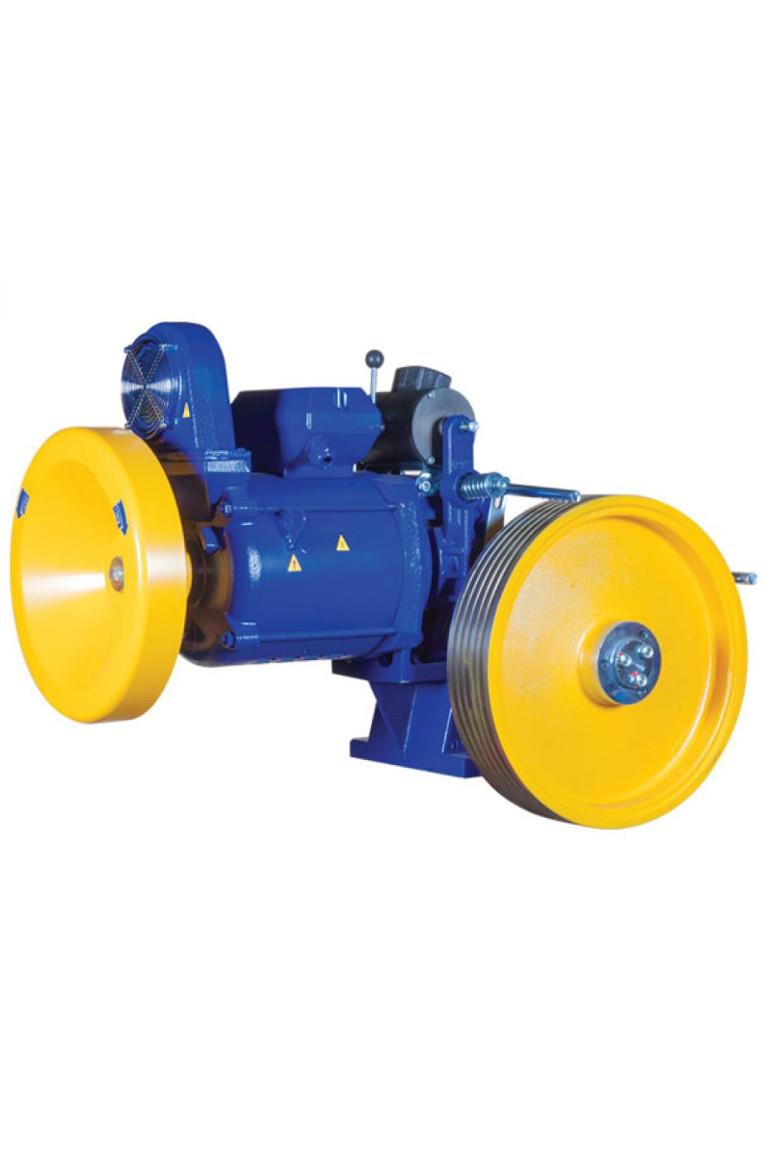

Z82-YAN YATAKSIZ DİŞLİLİ MAKİNE MOTORU

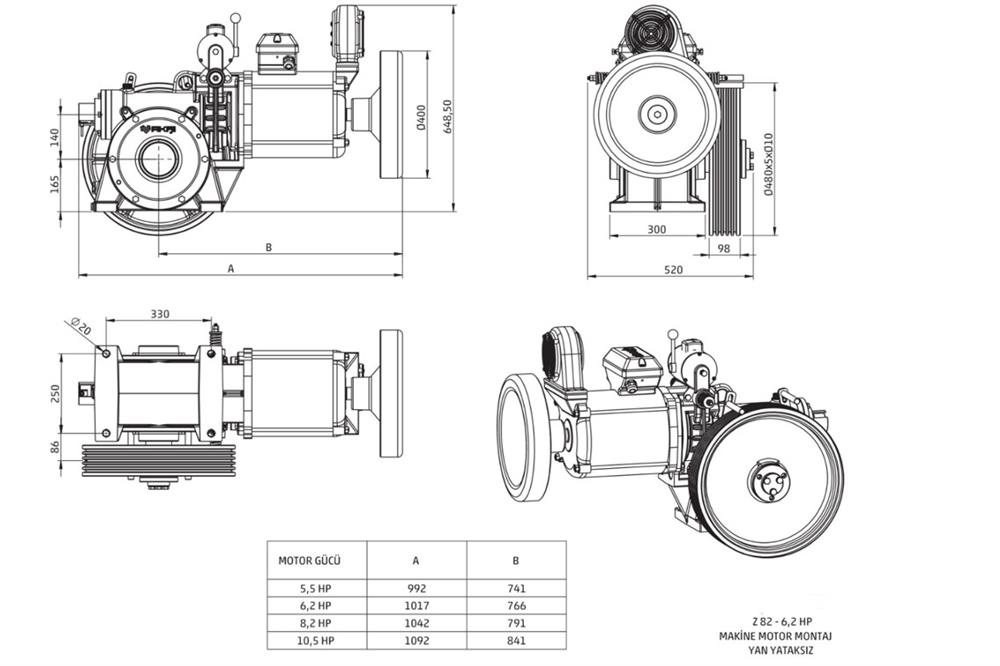

Z82-YAN YATAKSIZ DİŞLİLİ MAKİNE MOTORU-TEKNİK ÇİZİM
Akis ZF82 lift machine motor - Without External Support, maximum static load is 3.500 kg. Capacity 320 – 800 kg. for 1:1 roping. Maximum cabin speed is 1,60 m/s. Power for VVVF motor is 4,0 – 7,5 KW.
|
Model
(Product Type)
|
Askı Tipi
(Suspension Type)
|
Kasnak Ölçüsü
(Pulley Size)
|
Statik Yük
(Static Load)
|
Kabin Hızı
(Car Speed)
|
Kapasite
(Capasity)
|
Oran
(Rotio)
|
| ZF 82 4,0 KW |
1:1 |
Ø480x5xØ10 |
3500 KG |
1,00 m/s |
450 KG |
38/1 |
| Ø480x5xØ10 |
3500 KG |
1,60 m/s |
320 KG |
48/2 |
| ZF 82 5,5 KW |
1:1 |
Ø480x5xØ10 |
3500 KG |
1,00 m/s |
630 KG |
38/1 |
| Ø480x5xØ10 |
3500 KG |
1,60 m/s |
450 KG |
48/2 |
| ZF 82 7,5 KW |
1:1 |
Ø480x5xØ10 |
3500 KG |
1,00 m/s |
800 KG |
38/1 |
| Ø480x5xØ10 |
3500 KG |
1,60 m/s |
630 KG |
48/2 |
