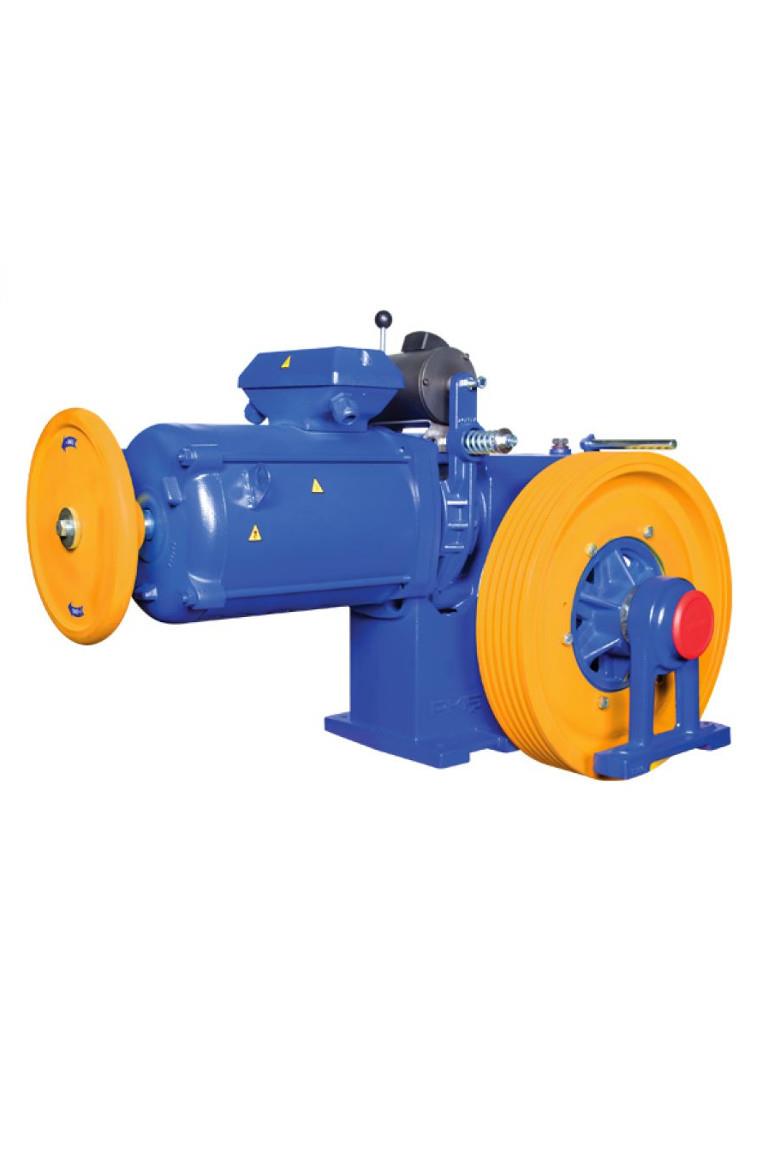

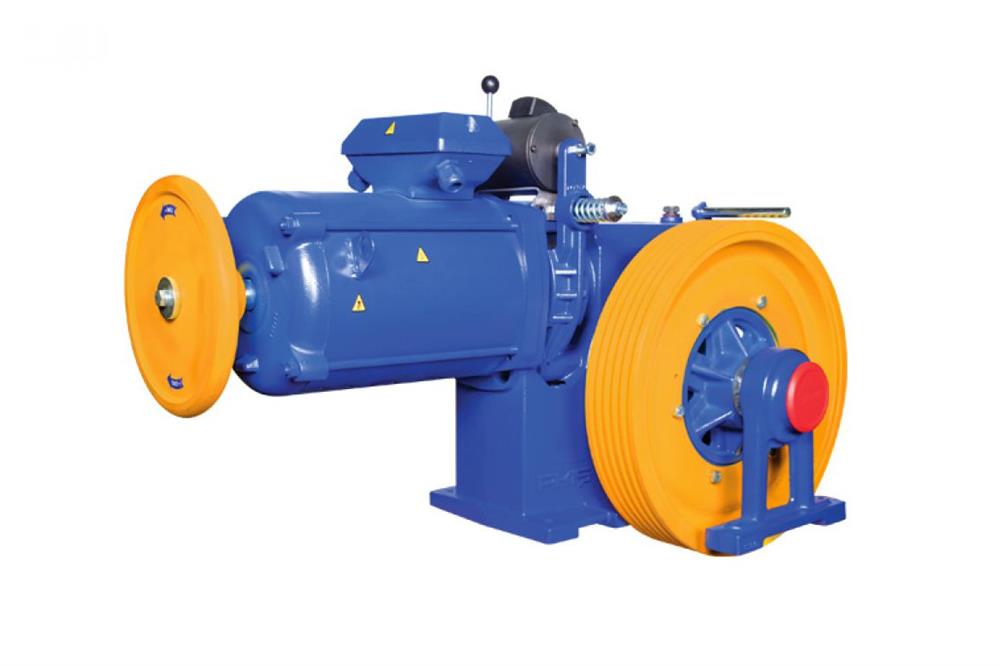

CF150-DİŞLİLİ MAKİNE MOTORU

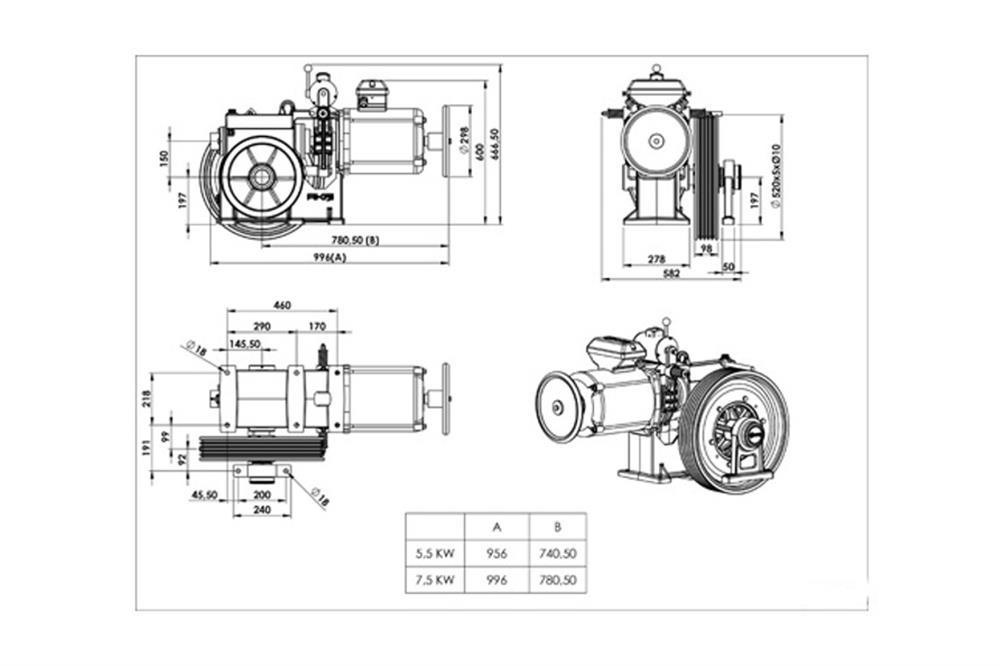

CF150-DİŞLİLİ MAKİNE MOTORU-TEKNİK ÇİZİM
Akis CF150, maximum static load is 3500 kg. Capacity 320 – 1600 kg. for 1:1 and 2:1 roping. Maximum cabin speed is 2,40 m/s. Power for VVVF motor is 5,5 – 7,5 KW.
Model
(Product Type)
|
Askı Tipi
(Suspension Type)
|
Kasnak Ölçüsü
(Pulley Size)
|
Statik Yük
(Static Load)
|
Kabin Hızı
(Car Speed)
|
Kapasite
(Capasity)
|
Oran
(Rotio)
|
CF-150 5,5 kW VVVF |
1:1 |
480*4*10 |
3500 KG |
2,00 m/s |
320 KG |
38/2 |
480*5*10 |
3500 KG |
1,60 m/s |
400 KG |
47/2 |
480*5*10 |
3500 KG |
1,20 m/s |
500 KG |
63/2 |
480*5*10 |
3500 KG |
1,00 m/s |
630 KG |
38/1 |
480*5*10 |
3500 KG |
0,80 m/s |
720 KG |
47/1 |
480*5*10 |
3500 KG |
0,63 m/s |
800 KG |
59/1 |
2:1 |
480*4*10 |
3500 KG |
1,20 m/s |
560 KG |
47/3 |
480*4*10 |
3500 KG |
1,00 m/s |
630 KG |
38/2 |
480*5*10 |
3500 KG |
0,80 m/s |
800 KG |
47/2 |
480*5*10 |
3500 KG |
0,60 m/s |
1000 KG |
63/2 |
480*5*10 |
3500 KG |
0,50 m/s |
1250 KG |
38/1 |
480*5*10 |
3500 KG |
0,40 m/s |
1440 KG |
47/1 |
480*5*10 |
3500 KG |
0,30 m/s |
1600 KG |
59/1 |
CF-150 7,5 kW VVVF |
1:1 |
480*4*10 |
3500 KG |
2,40 m/s |
320 KG |
47/3 |
480*5*10 |
3500 KG |
2,00 m/s |
400 KG |
38/2 |
480*5*10 |
3500 KG |
1,60 m/s |
560 KG |
47/2 |
480*5*10 |
3500 KG |
1,20 m/s |
750 KG |
63/2 |
520*5*10 |
3500 KG |
1,00 m/s |
800 KG |
41/1 |
460*5*10 |
3500 KG |
0,80 m/s |
900 KG |
46/1 |
400*5*10 |
3500 KG |
0,63 m/s |
1000 KG |
46/1 |
2:1 |
480*4*10 |
3500 KG |
1,60 m/s |
560 KG |
35/3 |
480*4*10 |
3500 KG |
1,20 m/s |
630 KG |
47/3 |
480*5*10 |
3500 KG |
1,00 m/s |
800 KG |
38/2 |
480*5*10 |
3500 KG |
0,80 m/s |
1120 KG |
47/2 |
